Liquid Petroleum Gas Compressor 5.5Kw-25Kw
https://www.jianshentank.com/storagetank

Liquid Petroleum Gas Compressor 5.5Kw-25Kw

The principle of using a liquefied petroleum gas compressor for unloading is to pressurize the tanker truck, not directly extract the liquid, but to push the liquid in the LPG truck to flow into th...
Rated 4.6/5 based on 513 customer reviews
Contact US Get Price
Share:
Previous:
Next:
Content

The principle of using a liquefied petroleum gas compressor for unloading is to pressurize the tanker truck, not directly extract the liquid, but to push the liquid in the LPG truck to flow into the storage tank through pressure. Then, the gas in the storage tank will flow towards the tanker truck, and this cycle will continue

Medium: liquefied gas
Compression level: First level compression
Nominal volumetric flow rate: 1.5 (m3/min)
Inhalation pressure: 1.0MPa
Exhaust pressure: 1.5MPa
Aspiration temperature: 40 ℃
Exhaust temperature: ≤ 110 ℃
Compressor speed: 740r/min
Equipped with power: YB-225M-8 22KW EXDIIBT4 740r
Noise: 85dB (A)
Vibration intensity: 28
External dimensions: (L) × W × H) ~1900mm × 1200mm × 1400mm

Inquiry


    More Accessories

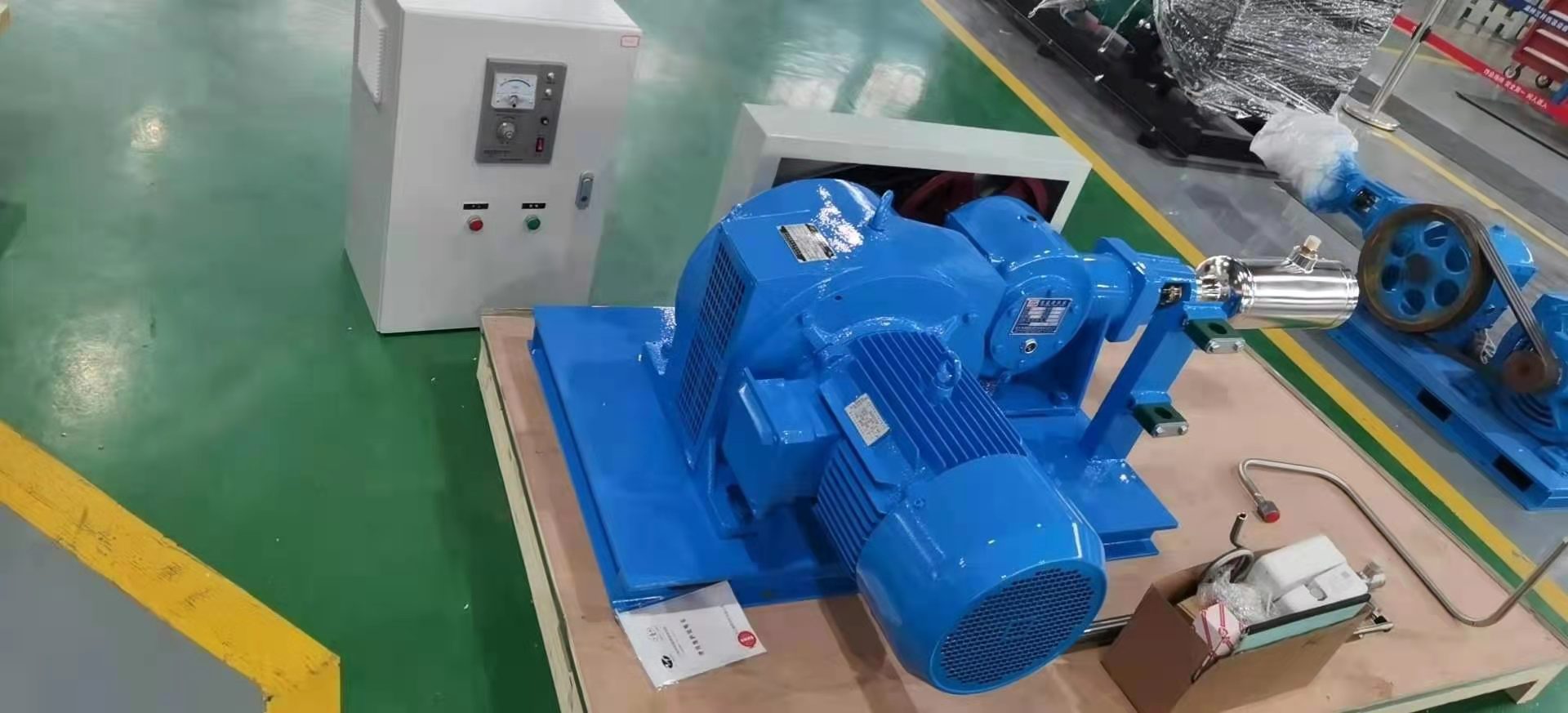

    Cryogenic Booster Pump installation caution
    The liquid inlet pipe and return steam pipe of the pump should be equipped with metal corrugated hoses. The inlet pipe, return steam pipe and valve should have a good thermal insulation and cold...
    Cryogenic Booster Pump installation caution
    The LPG safety valve is a key component in the LPG system

    The LPG safety valve is a key component in the LPG system
    The LPG safety valve is a key component in the LPG system
    Liquid Petroleum Gas Compressor 5.5Kw-25Kw
    The principle of using a liquefied petroleum gas compressor for unloading is to pressurize the tanker truck, not directly extract the liquid, but to push the liquid in the LPG truck to flow into th...
    Liquid Petroleum Gas Compressor 5.5Kw-25Kw
    centrifugal pump used in LPG tank
    Centrifugal pump is a kind of fluid machine, mainly used for conveying liquid or compressing gas. Centrifugal pumps are one of the most common types of pumps out there, and they work on a relativel...
    centrifugal pump used in LPG tank
    Self-closing valve gas cylinder filling nozzles
    MOQ: 5 pcs For Malaysia, Vietnam, Nigeria, Gambia, Uganda, Ghana, Kenya,Zambia market etc Applicable to the following valve models： D20 self-closing valve gas cylinder filling nozzl...
    Self-closing valve gas cylinder filling nozzles
    LNG air temperature heat exchange vaporizer
    Product specification: 75Nm3/h 200Nm3/h, 300Nm3/h, 500Nm3/h, 1000Nm3/h Air-temperature vaporizer materials and advantages： All of the capacity of the vaporizer support customize, all parts a...
    LNG air temperature heat exchange vaporizer
    LPG gas cooking gas filling machine
    Function 1. Automatic tare removal, automatic zeroing of the weighing platform (the weight of the weighing platform can be reduced, and the gun barrel can be automatically reset); 2. Automaticall...
    LPG gas cooking gas filling machine
    LPG gas refilling plant Emergency shutdown system
    Emergency shutdown valve system. (1) A facility shall be installed with an emergency shutdown system which shall be able to prevent or mitigate the development of an incident, accident or haz...
    LPG gas refilling plant Emergency shutdown system
    YQB LPG bottle filling pump
    Model: yqb2-5 Flow rate: q=5l-10l/min Pressure difference: p△=0.1-0.5mpa Working pressure: p=1.6mpa Speed: h=900r/min Motor power: n=2.2kw Voltage: v=220v It is mainly used for...
    YQB LPG bottle filling pump
    Explosion proof LPG gas filling dispenser with weight scales
    This is our LPG filling dispenser with weight scales,Our auto dispenser has a display too,Which can fill a 12.5kg within 60seconds 1.The dispenser automatically stop when the cylinder is full of g...
    Explosion proof LPG gas filling dispenser with weight scales
    High effective LPG filling dispenser with dual nozzles
    This filling machine supplied by HNJS is tested by the National Explosion-proof Electrical Testing Center and is a qualified filling device. The number of LPG filling scales used by the user's fill...
    High effective LPG filling dispenser with dual nozzles
    Screw Pump: Efficiency Unleashed in LPG Handling

    Unlocking efficiency in LPG handling, Screw Pumps prove to be indispensable.
    Screw Pump: Efficiency Unleashed in LPG Handling
    Digital level gauge for micro cryogenic gas tank
    Cryogneic gas digital level gauge for microbulk tank ■ Suitable for cryogenic gas cylinders such as dewar bottles; ■ It can measure liquid oxygen (LO2), liquid nitrogen (LN2), liquid argon (L...
    Digital level gauge for micro cryogenic gas tank
    LPG: Role of Compressors

    LPG (Liquefied Petroleum Gas) stations are vital hubs for the storage and distribution of this clean and efficient energy source.

    LPG: Role of Compressors
    Epoxy acetylene gas cylinder
    Storage of gas cylinders: 2.1 The user shall not store more than three acetylene cylinders on site. The distance between the storage station and the location of open flames or sparks shall not be...
    Epoxy acetylene gas cylinder
    Liquid Carbon Dioxide cylinder filling dispenser
    The carbon dioxide filling system has overcome the core technical difficulties of the automatic cut-off function and automatic replacement function, completely overcoming the shortcomings of poor s...
    Liquid Carbon Dioxide cylinder filling dispenser
    How LPG pump works
    This pump is a positive displacement vane pump. It works by centrifugal sliding of the blades. The flow rate is related to the rotation speed of the shaft. The inner curved surface of the stator is...
    How LPG pump works
    Carbon Dioxide Filling Scales
    Combined with the PLC intelligent control system, it is possible to automatically close the solenoid valve and alarm when the set weight is filled Main technical parameters  Input power supply...
    Carbon Dioxide Filling Scales
    Gas cylinders D28 Self-closing valve filling nozzle
    This gun head is a customized product and is only used for D28 self-closing valve gas cylinder valves The valve model is shown in the figure, and the valve specification is as follows: Standard...
    Gas cylinders D28 Self-closing valve filling nozzle

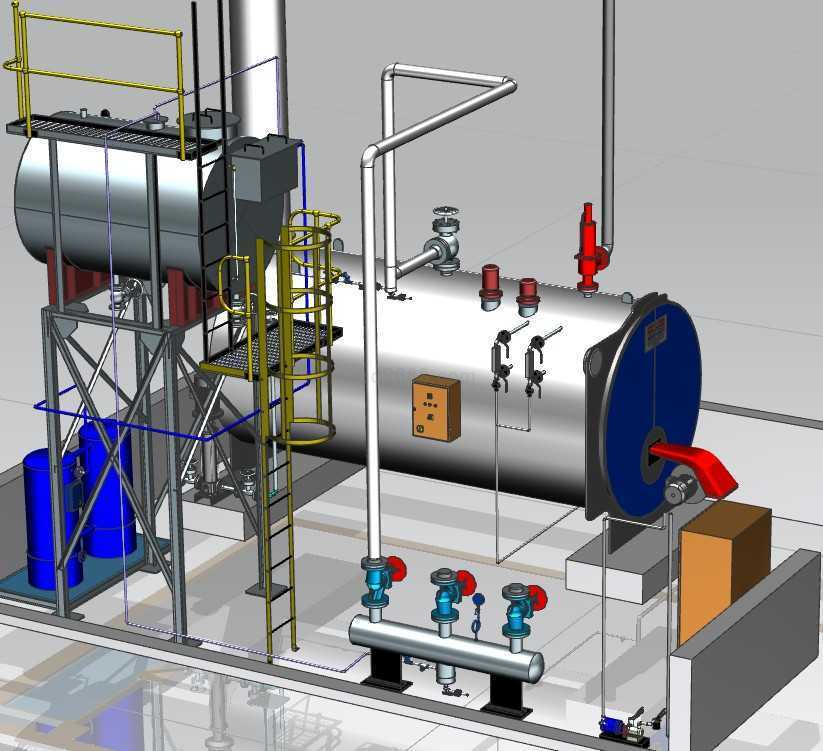

    10Mt Nature gas Steam Boiler 16Bar
    Environmentally friendly: Large combustion chamber space, high quality and reliable burner, so that the fuel can be completely burned Excellent configuration: advanced control system (the ma...
    10Mt Nature gas Steam Boiler 16Bar
    Complete picture of LPG valves
    Many investors want to enter the LPG industry because of its energy properties, the fact that it is a long-lasting, stable and profitable business, and the high barriers to entry; in fact, most inv...
    Complete picture of LPG valves
    LPG Butane Propane gas filling dispenser with weight scale
    Liquefied petroleum gas can be filled with a gas dispenser, or it can be left unused But for regular gas stations, liquefied petroleum gas filling machines are essential for the following reasons:...
    LPG Butane Propane gas filling dispenser with weight scale
    LPG storage tank application—LPG station gas dispenser
    When filling a steel cylinder, it is necessary to confirm the voltage, number of gun heads, and caliber of the LPG gas separator. When inflating the vehicle, it is necessary to confirm the voltage,...
    LPG storage tank application—LPG station gas dispenser
    LPG dispenser
    LPG dispenser can be used to fill steel cylinders and vehicles, with high work efficiency and economic benefits. it has the function of automatic stop charging and can also check the sales records,...
    LPG dispenser
    LPG Pump Hydrocarbon Pump
    The LPG pump type is a positive displacement vane hydrocarbon pump. The work relies on the centrifugal sliding of the blades. The flow rate is related to the speed of the shaft. The inner surface o...
    LPG Pump Hydrocarbon Pump
    Introduction to pressure regulating device

    The pressure regulating device plays a vital role in the liquid natural gas storage tank system.
    Introduction to pressure regulating device
    LPG Pipe Gas Pressure Regulator
    Gas pipeline regulator features: Small size Easy to install Stable performance Safe and Reliable Main Technical Parameters: ◎ Inlet port Pressure ：≤1.6MPa ◎ Outlet Pressure：5-1...
    LPG Pipe Gas Pressure Regulator

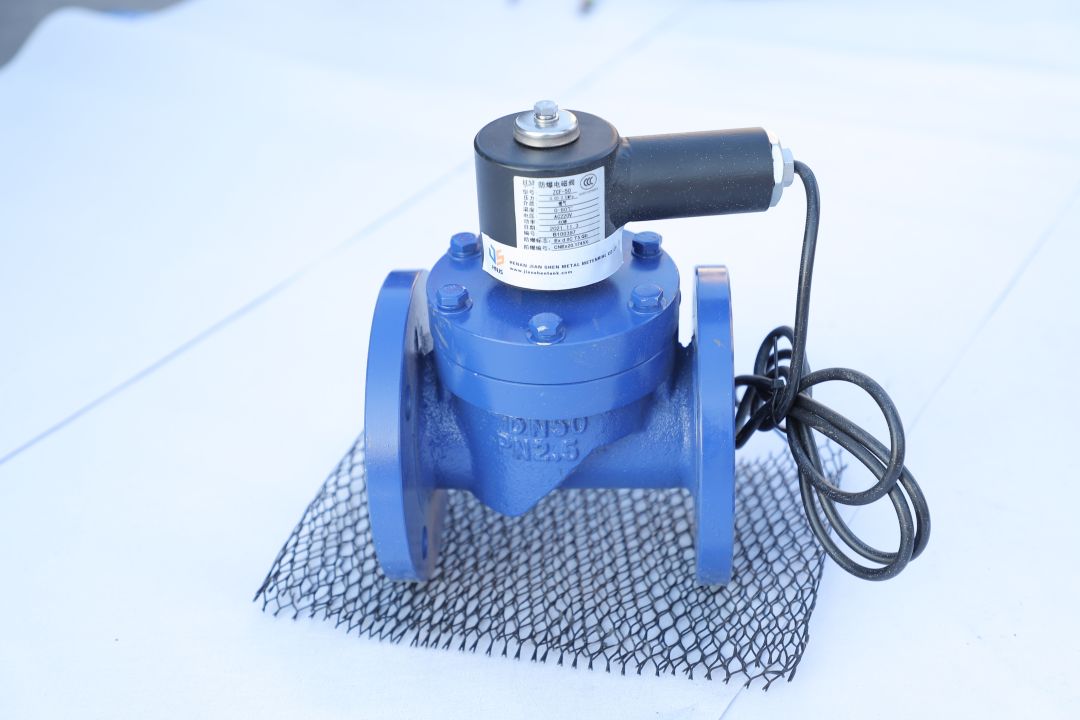

    Solenoid valve for gas filling dispenser
