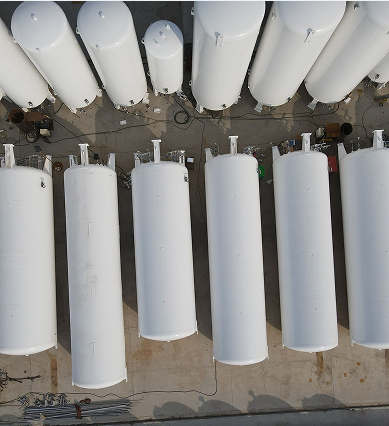

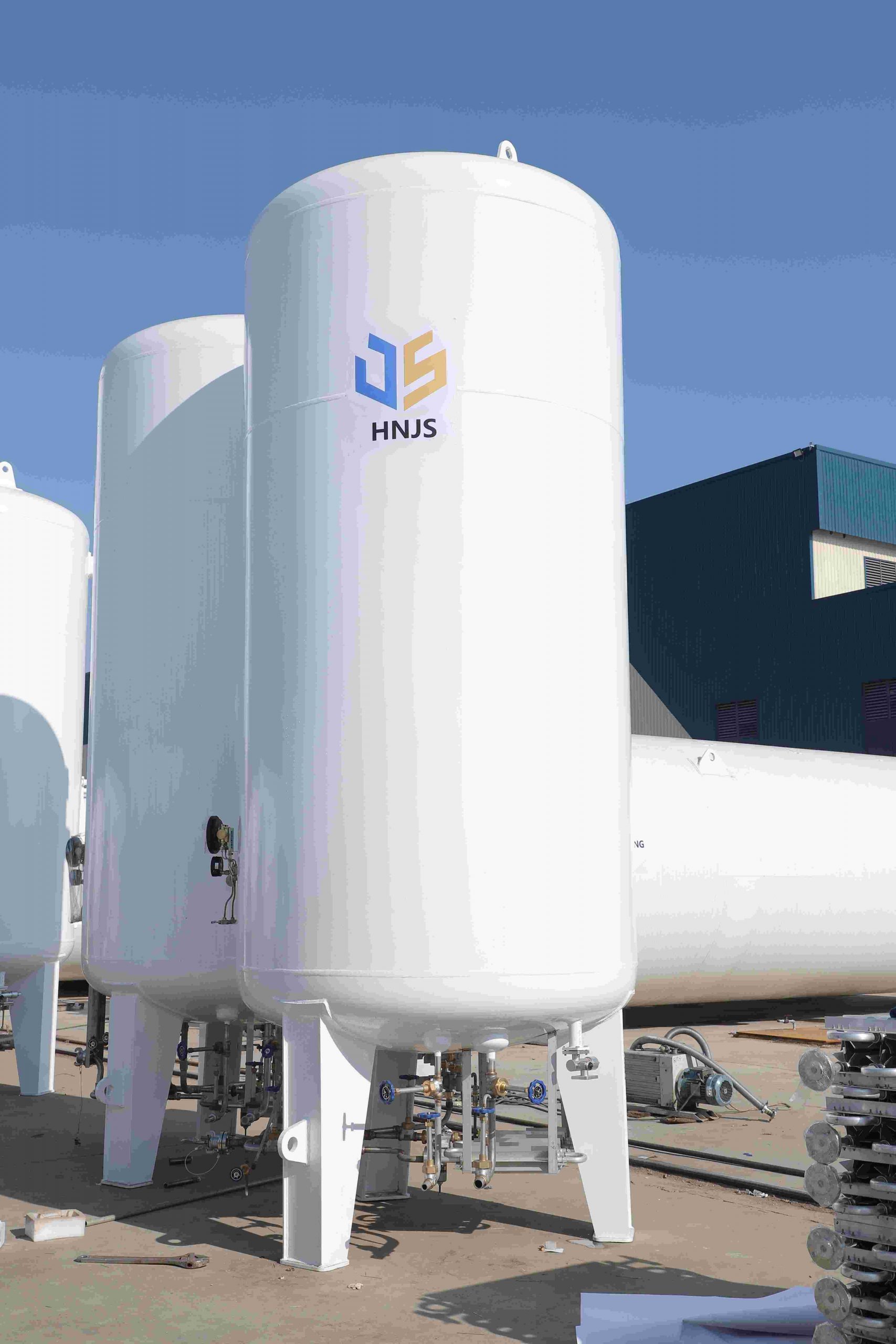

5-200 cubic metre cryogenic storage tank
Liquefied gas storage tanks are commonly used storage pressure vessels. The medium inside the tank is mostly compressed air, and the structure is mostly vertical.
Liquefied gas storage tanks are commonly used storage pressure vessels. The medium inside the tank is mostly compressed air, and the structure is mostly vertical. Usually according to the volume of the storage tank, pressure level, import and export pipe diameter to design the structure of the tank size. As the medium is compressed air, gas storage tank tank design temperature is generally 60 ℃, while the pressure according to the user process.
The safety valve pipe diameter of the storage tank depends on the tank pressure, volume and hourly flow of compressed air in the tank, while the compressed air inlet and outlet pipe diameter and orientation depends on the volume and hourly flow of compressed air in the tank and the process arrangement, in the specific order, the pipe size and orientation of the equipment, by the customer, the sales department and the technical department to jointly agree.
