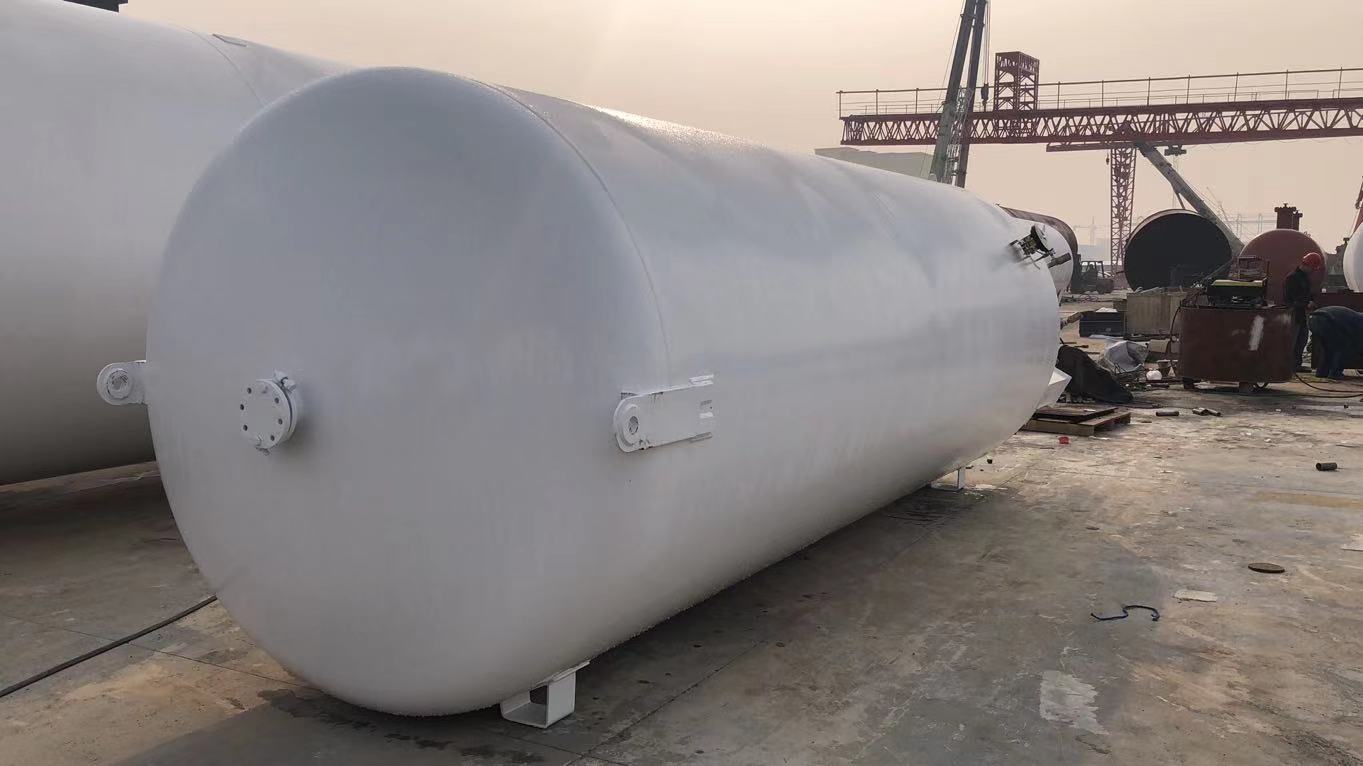

5cbm LCO2 TANK

Upper liquid inlet: Open the upper liquid inlet for the first time to reduce the temperature of the storage tank Lower liquid inlet: open the lower liquid inlet for normal use Liquid inlet: connect...

30M3 cryogenic LCO2 storage tank

LO2/LN2/LAr storage tank

Content

Upper liquid inlet: Open the upper liquid inlet for the first time to reduce the temperature of the storage tank

Lower liquid inlet: open the lower liquid inlet for normal use

Liquid inlet: connect the upper liquid inlet and the lower liquid inlet

Drain port 1: storage tank liquid outlet (can be connected to pipeline steel cylinder)

Drain 2: tank outlet (spare)

Full indication: Prompt when full of liquid

The upper port of the liquid level gauge/the lower port of the liquid level gauge: all need to be opened for the first use

Vent port: Let the naturally evaporated gas be discharged to the atmosphere through the valve, and the pressure in the tank will not increase

Residual liquid port: open the exhaust and residual liquid to empty the storage tank when the tank is not applicable

Exhaust port: Let the naturally evaporated gas be discharged to the atmosphere through this valve, so that the pressure in the tank will not rise

Self-pressurization system: to ensure that the pressure is automatically adjusted when the pressure is low, and there is a pressure-adjusting valve on it

Pressure relief device port: It plays a safety role, when the storage tank cannot work normally and the pressure is too high

Safety valve: When the pressure is high, it will automatically release the pressure

Inquiry

More Cryogenic liquid co2 tank advantages

Cryogenic storage tank is used to store liquid oxygen, nitrogen, argon, carbon dioxide and other media vertical or horizontal double-wall vacuum adiabatic storage tank.

Features of 5 cubic metre cryogenic storage tank for LNG

As the carbon dioxide storage tank is the storage of low-temperature liquid, once the accident occurs, the refrigerated liquid will evaporate a lot, the amount of gasification refrigeration of the original state about 300 times, in the atmosphere will form an automatic detonation gas mass.

The carbon dioxide storage tank

The volume of the storage tank is limited.

Volume of cryogenic liquid storage tanks

Storage tanks are usually made of carbon steel or stainless steel.

Material design of liquefied carbon dioxide storage tanks

The operation should strictly control the liquid level and pressure not to exceed the specified value, and at the same time, the liquid level should be checked against the site to prevent overfilling

The key in the process of liquid nitrogen tank flushing and filling

The carbon dioxide liquid pump is the main equipment used in the carbon dioxide filling system. The purpose of its work is to compress the liquid carbon dioxide from the storage tank and fill it into the carbon dioxide cylinder for the user.

The carbon dioxide liquid pump

Equipment of filling station Liquid Carbon Dioxide Gas Storage Tanks used to store carbon dioxide compressed as a liquid. The tanks are usually of a double-layer design, with the interlayer evacua...

Chili ASME VIII DIV-1 Liquid Carbon Dioxide Tank

Low-temperature storage tanks are integral in various industries, facilitating the safe preservation of substances at extremely cold temperatures.

Low-Temperature Storage Tanks: Key Features and Applications

The gas of carbon dioxide at normal temperature can be converted into industrial carbon dioxide, combined with the synthesis of propylene carbonate, and then converted into finer chemical substance...

Cryogenic liquid co2 tank

Advantages of cryogenic liquid carbon dioxide storage tanks Thermal insulation performance: The thermal insulation material is filled with pearlite in the hot state and then vacuumized, with su...

Cryogenic liquid co2 tank advantages

Liquid Natural Gas (LNG) has revolutionized the energy landscape, offering an efficient solution for the transportation of natural gas.

Understanding the Significance of LNG Tanks in Industrial Settings

In the medical field, carbon dioxide storage tanks also play an important role. Carbon dioxide can be used during anesthesia to provide a respiratory airway and absorb the patient's exhaled carbon ...

Medical 5 tons carbon dioxide storage tank

Upper liquid inlet: open the upper liquid inlet for the first time to reduce the temperature of the storage tank Lower inlet: open the lower inlet for normal use Liquid inlet: connects the upper ...

Low temperature carbon dioxide storage tank valves and their role

When producing carbonated drinks, a series of equipment is needed to process carbon dioxide. Here is some equipment you may need: Carbon dioxide storage tank (CO2 Storage Tank): used to store ca...

liquid CO2 tank for carbonated drinks plant

In China, the national standard for carbon dioxide storage tanks is GB/T 18442-2008 "Steel Pressure Vessel Carbon Dioxide Storage and Transportation Equipment". This standard specifies the requirem...

Requirements for cryogenic carbon dioxide storage tanks

Explore how these tanks have evolved over time, adapting to technological advancements and industry demands.

The Evolution of Cryogenic Tanks: A Brief History2

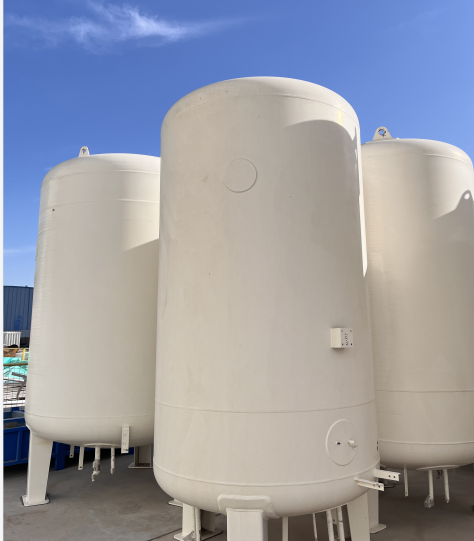

A cryogenic liquid storage tank is a type of storage tank used in industry and is sometimes called a liquid nitrogen storage tank

Industrial cryogenic liquid storage tanks

Cryogenic storage tank products for steel, metallurgy, structure, chemical industry, pharmaceutical, food, glass, civil, medical work, the series of cryogenic storage tanks for the double-layer fixed vacuum powder adiabatic storage tanks.

Cryogenic storage tank use

Selecting the appropriate pressure vessel is a crucial decision.

Choosing the Right Pressure Vessel for Your Needs

(5) The inner and outer surfaces of the stainless steel liner are degreased and pickled and passivated, and the inner and outer surfaces of the carbon steel casing are sandblasted and rust-removed ...

The inner and outer surfaces of the stainless steel liner of the cryogenic storage tank are degreased and pickled and passivated.

The valves, pipe structure, and design of this tank piping system are all compact, straightforward, and dependable.

Disposal measures for pressure vessels during and after the incident

Low-temperature storage tanks are crucial for storing cryogenic liquids like LNG (liquefied natural gas).

Understanding the Basics of Low-Temperature Storage Tanks

Upper liquid inlet: Open the upper liquid inlet for the first time to reduce the temperature of the storage tank Lower liquid inlet: open the lower liquid inlet for normal use Liquid inlet: c...

5cbm LCO2 TANK

Dewar flasks play a pivotal role in various scientific, medical, and industrial applications.

Applications of Dewar Flasks

Sustainability is a growing focus in industrial operations, including low-temperature storage.

Sustainability Practices in Low-Temperature Storage Operations

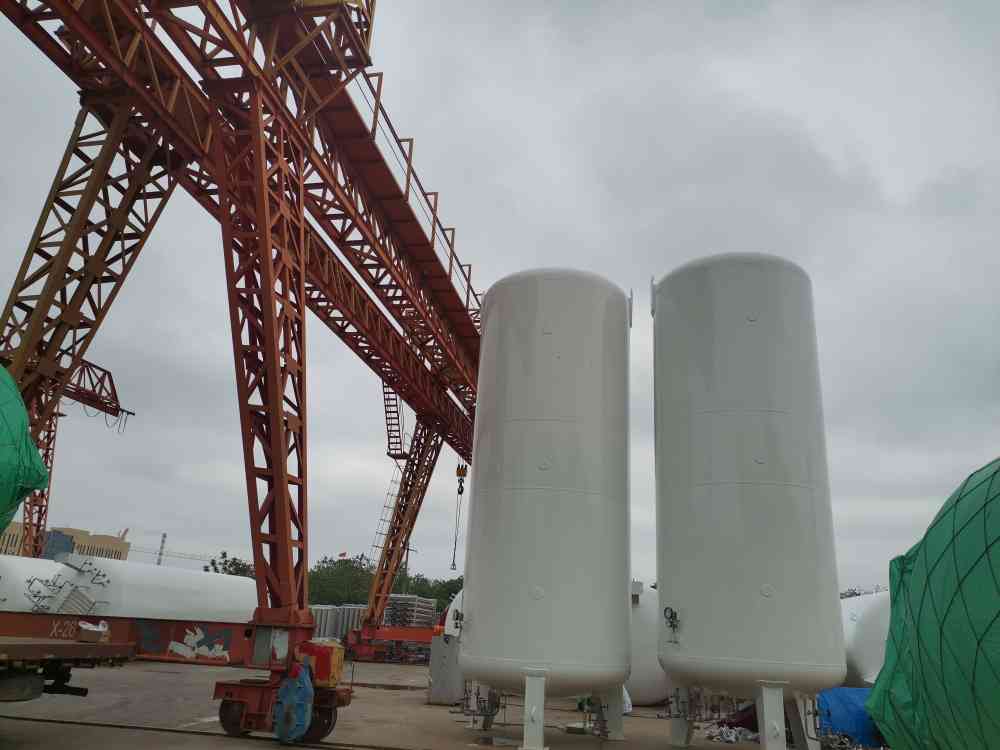

Carbon dioxide storage tank, low-temperature liquid carbon dioxide storage tank, structure for the inner and outer container composed of double containers, for the vacuum powder adiabatic type, can be divided into vertical and horizontal two types, inner container material selection 16MnDR, outer container material can be selected according to the user’s region Q235-B or 16MnR
